Roland's new FA series completely reimagines the music workstation, streamlining it for effortless real-time power, ultra-fast workflow, and maximum versatility. Ready to support any type of music you play, the FA-06 is packed with a massive sound collection inherited from the flagship INTEGRA-7, a ton of studio-quality effects, and expressive real-time controls, plus onboard sampling with zero load time for instant audio playback from the 16 backlit pads. The sequencer features simple operation and non-stop loop recording, letting you capture songs and ideas as they come and export them as multitrack data to use with your DAW. Flowing seamlessly into every part of your creative world, the FA-06 morphs instantly from a standalone keyboard to become the command center of your computer music studio, with USB audio/MIDI interfacing, powerful real-time controllers, DAW transport controls, and much more.
Reimagined music workstation designed to maximize your creative flow
Light, mobile body with 61-note velocity-sensitive keyboard
Over 2000 sounds from the flagship INTEGRA-7 sound module, including SuperNATURAL synth and acoustic tones and drums; add even more tones via internal wave sound expansion slots
SuperNATURAL synth engine is fully compatible with the expansive collection of free INTEGRA-7 synth tones available from Roland's Axial sound library site
16-track sequencer with non-stop loop recording makes it easy to build songs quickly; export your sequencer tracks to an SDHC card as a complete stereo mix, or as multitrack audio or MIDI data for use in your DAW
Onboard sampler based on the SP-404SX features 16 pads x 4 banks and direct recording/playback via SDHC cards
Polish your sounds with a multitude of studio-quality effects, including 16 independent MFX engines, six COMP+EQ processors for drums, unique TFX (total effects), and global EQ, chorus, and reverb
Tweak tones, effects, and external MIDI devices in real time with six user-assignable Sound Modify knobs
Intuitive, streamlined interface with large color LCD
Press one button to instantly configure the FA-06 for use with your DAW via USB
D-Beam, Rhythm Pattern, Arpeggiator, and Chord Memory functions to expand your creative palette
Guitar/Mic and Line input jacks for performing, sampling, and DAW audio recording; dedicated input reverb provides ambience for performing/recording
USB ports for sound expansion data, updates, and audio/MIDI interfacing with a computer; MIDI communication with the iPad is possible when using Apple's iPad Camera Connection Kit
No Work, All Play
Music workstations play an important role for keyboardists in a wide range of creative activities, from live performance to song development to production in the studio. However, they can often be complicated and difficult to use to their full potential, bogging down the creative process and inhibiting the flow of ideas. In developing the FA series, Roland has completely reimagined the music workstation to provide musicians an inspiring platform that's extremely powerful and versatile, yet simple and intuitive at the same time. With a streamlined interface and focused, practical features that maximize your creative flow, the FA series allows you to experience newfound freedom to deeply explore and develop your musical ideas with less effort than ever before.
Fast Workflow And Intuitive Real-Time Control
You can feel the speed of this new breed of instrument the moment you hit the power switch—unlike many workstations that can take a minute or more to boot, the FA-06 is ready to play in seconds. The panel is logically organized into dedicated sections, and the large color LCD presents a gorgeous look with inviting hi-res graphics for selecting tones, working with the sequencer, and adjusting various settings. It's easy to navigate through the FA-06's large sound selection by category and assign favorites for fast recall, while dedicated buttons deliver instant access to often-used functions such as transpose, octave range, and many others. With six knobs and a powerful yet easy-to-use assignment matrix, the Sound Modify section lets you control a wide range of parameters in real time for maximum expression while performing live and working in the studio.
Instant-Access Performance Sampler Onboard
Based on Roland's mega-popular SP-404SX, the sampler in the FA series features fun, fast, hands-on operation and sampling/playback via convenient SDHC cards. You can play audio samples directly from the 16 pads on the FA-06 panel, making it easy to expand your performances with loops, backing tracks, one-shots, vocal phrases, sound FX, and more. Thanks to SDHC flash memory, your samples load instantly with no wait time, and you can use the four pad banks and clipboard function to rearrange your samples as needed for any performance. It's super-easy to sample the FA-06's own sounds or external sources via the Mic/Guitar and Line inputs, and you can even play WAV, AIFF, or MP3 samples that you've transferred from your computer. A variety of editing features allow you to tweak your samples to taste, including quick adjustment of playback position and level. In addition to sample triggering, the pads can be used for numerous functions such as muting parts, entering numeric values in the display, and more.
Seamless Hardware Integration With Your Daw
In addition to standalone use as a performance instrument and composing workstation, the FA-06 transitions into your computer-based music production world with ease. A simple press of the dedicated DAW Control button instantly sets up the FA-06 to communicate with your computer via USB*, letting you use the keyboard and knobs to send MIDI data to your DAW for playing software synths, controlling plug-in effects, and more. The FA-06 also includes control maps for popular DAWs, providing a quick and easy setup to control transport functions and more in your specific software. You can even use the FA-06 as a USB audio interface to record a variety of different sources directly into your DAW, including a mic, guitar, or stereo line level device connected to the FA-06's rear-panel input jacks, and you can capture the FA-06's internal sounds and sampler playback as well. Sound output is also supported, allowing you to monitor the DAW output through the stereo output and headphones jacks on the FA-06.
*USB communication requires installation of the FA-series USB driver on your computer.
Keyboard: 61 keys (with velocity)
Sound Generator Section
Maximum Polyphony: 128 voices (varies according to the sound generator load)
Parts: 16 parts
Tones: SuperNATURAL Acoustic SuperNATURAL Synth SuperNATURAL Drum Kit PCM Synth PCM Drum Kit * GM2 compatible sounds are included.
Wave Expansion Slots
2 slots * The wave expansion slots are rewritable internal waveform memory. You can download data from the Axial sound library site and write it via a USB flash drive into the FA's internal wave memory (slot).
Favorite : Yes
Multi-Effects: 16 systems, 68 types (Vocoder can be used only on part 1.) Part EQ: 16 systems Drum Part COMP+EQ: 6 systems Chorus: 3 types Reverb: 6 types Master Compressor (This can be changed to Insert FX (78 types).) Master EQ Total Effects (TFX): 29 types Mic Input Reverb: 8 types
MIDI Tracks: 16
File format: Original, SMF export/import supported, WAV export supported * Sampler trigger data can be recorded.
Format: 16-bit linear, 44.1 kHz, WAV/AIFF/MP3 import supported
Maximum Polyphony: 8
Number of Samples: 16 Pads x 4 Banks (for each song) * Samples cannot be used as wave data for the sound engine.
Rhythm Pattern: Yes
Chord Memory: Yes
Controllers: D-BEAM Controller Pitch Bend/Modulation Lever Assignable Switch x 2 (S1/S2) Control Knob x 6 Sample Pad Tempo Knob
Display: 5-inch Graphic Color LCD
External Memory: SD Card (SDHC supported)

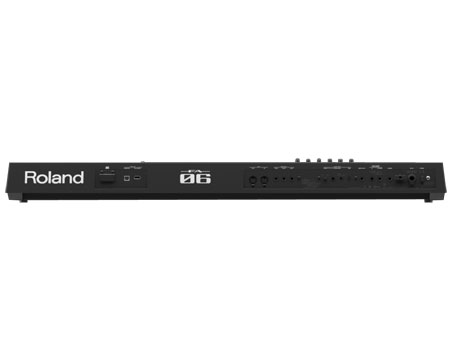

Headphones Jack: Stereo 1/4-inch phone type MAIN Output Jacks (L/MONO, R): 1/4-inch TRS phone type Sub Output Jack: Stereo 1/4-inch phone type AUDIO INPUT Jacks LINE: Stereo miniature phone type GUITAR/MIC: 1/4-inch phone type FOOT PEDAL Jacks (CTRL 1, CTRL 2, HOLD) MIDI Connectors (IN, OUT) USB FOR UPDATE Port USB COMPUTER Port (USB Hi-Speed AUDIO/MIDI) (Use a USB cable and a computer with a USB port that support USB 2.0 Hi-Speed.) DC IN Jack
Power Supply: AC Adaptor
Current draw: 1,300 mA
Quick Start Leaflet "USING THE UNIT SAFELY" SD Card (installed in the product when shipped from the factory) SD Card Protector (installed in the product when shipped from the factory) AC Adaptor Power Cord
Options (sold separately)
Keyboard Stand (*1): KS-18Z, KS-12 Pedal Switch: DP series Expression Pedal: EV-5 USB Flash Memory (*2) Wireless USB Adapter: WNA1100-RL *1 When using the KS-18Z and KS-J8, ensure that the height of the unit is one meter or lower. *2 Use USB Flash Memory (supports USB 2.0 Hi-Speed Flash Memory) sold by Roland. We cannot guarantee operation if other products are used.
Size and Weight
Width: 1008 mm | 39-11/16 inches
Depth: 300 mm | 11-13/16 inches
Height: 101 mm | 4 inches
Weight: 5.7 kg | 12 lbs. 10 oz.
