• Maximum output current: 15 amps (1800 watts at 120 VAC)
• Line Cord: 6 ft. captive, 14 AWG, with three conductor Edison plug
• Lamps: 2 x 7 watts
• AC Voltmeter (if present): Range 60 to 150 VAC; Accuracy +/- 2 VAC
• Spike Protection Mode: Line to neutral
• Clamping Voltage: 250 volts peak
• Maximum surge current: 4,500 amps
• Maximum spike energy: 102 joules
• Noise attenuation: Transverse mode: Greater than 20 dB, 1.5 to 200 MHz
• Dimensions: 1.75 x 19 x 7.5 inches with light tubes in; when fully extended light tubes reach 3.5 inches from front panel surface
• Weight: 5 lbs (2.3 kg)
• Construction: Steel chassis, black painted

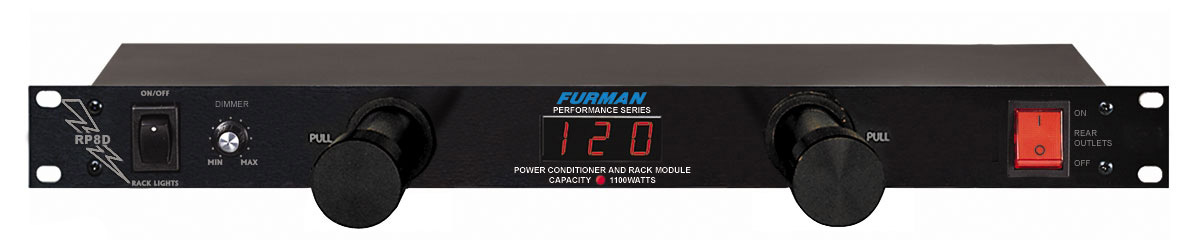

  The Furman RP8D Power Conditioner is an affordable power supply with eight protected outlets, slide-out lights and a 3-digit LED voltage meter that displays incoming voltage.
  The voltage meter is like an extra level of security. As soon as you plug it into the wall, you get an instant reading of the quality (voltage) of that outlet. If it's low, you know you need to move to another outlet. The fast-acting suppression circuit quickly responds to transients to return voltage to safe levels. RFI/EMI filtering is provided to reduce noise from some dimmers & lights and other equipment.

  The RP8D is the perfect accessory for any rackmount system. Install it in the top slot of your rack, and the eight switched AC outlets on the rear panel will power up and protect all your equipment up to a 15-amp load. The RP8D features two slideout, swiveling light fixtures to provide discreet illumination of your equipment on stages, in studios, and in other dark places. A dimmer knob lets you adjust the lamp brightness to just the right level.

  The RP8D conditioner protects your delicate electronic equipment by combining high voltage varistor (MOV) surge and transient suppressors. The fast-acting suppression circuit quickly responds to clamp transient voltages to safe levels. An RFI/EMI interference filter works to prevent noise from fluorescent lights, certain dimmers, radio transmitters, and similar sources of electronic pollution from contaminating the AC line and from there, leaking into sensitive audio, video, or computer circuits.

• Circuit Breaker
  For safety, a circuit breaker is provided on the rear panel. If the total load on the Power Conditioner (combining all outlets) exceeds the 15A (or 1800 watt limit), the circuit breaker will trip. If this happens, it may be easily reset by pushing in the button. There is no need to replace fuses.
• Lamps
  For convenience in travelling, the lamps (if present) may be pushed in, safely out of the way. When the rack is again ready to use, they pull out easily (up to 2.75 inches, or 7 cm) and may be rotated and aimed to provide optimum illumination for your equipment. They come supplied with 7 watt night-light bulbs. Cooler-running 4 watt bulbs or even colored Christmas tree bulbs may be substituted if desired. Replacements are readily available at most hardware stores or almost anywhere household light bulbs are sold, and can be ordered from Furman. Bulbs are easily replaced without removing the unit from the rack by unscrewing the cap on the end of each light tube.
• Switches
  All models have a convenient master switch for the rear outlets which glows when the power is on. In models with lighting, there is a separate Rack Lights switch for the lamps, plus a dimmer control knob which increases the lamps' brightness.
