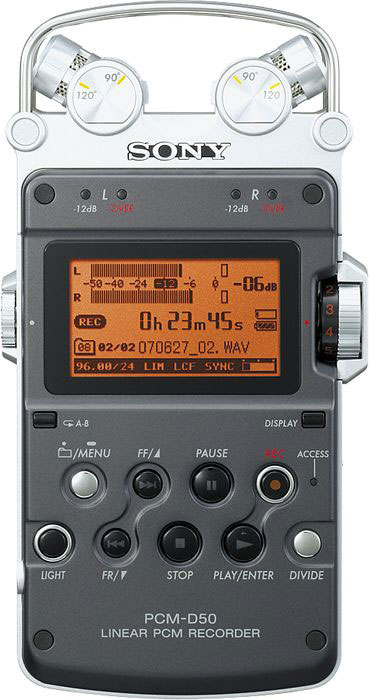

The PCM-D50 is a 96 kHz/24-bit recorder fitted with two-position (X-Y or Wide) stereo microphones, 4 GB of internal flash memory, and a Memory Stick Pro-HG Duo slot for additional storage. The body of the D50 is constructed of lightweight aluminum and it is built rugged to withstand the demands of pro applications, plus it offers long battery life using conventional AA alkaline batteries. The recorder includes a USB high-speed port for simple uploading/downloading its native .WAV format files to and from Windows PC or Macintosh computers. Other unique PCM-D50 features include digital pitch control, dual digital limiter (inherited from the PCM-D1), low-cut filter, Super Bit Mapping, A-B repeat, and MP3 playback capability. To complement the D50 recorder, new optional accessories include a remote commander, tripod stand, and microphone windscreen.

Built-in Electret Condenser Microphones The PCM-D50's electret condenser microphones have exceptionally high sound quality and offer a selection of 2 operating positions, X-Y and Wide Stereo. X-Y covers a wide sound range with good depth, perspective and a natural sounding stereo image; or alternatively, a wide stereo position offering a wider spread stereo image.

Superior Audio Signal Path The PCM-D50 is designed with four separate circuit boards to separate analog audio, digital audio, digital recording, and power supply circuits. Separate circuit boards for each function helps minimize noise.

Simple Uploading to Computer The PCM-D50 conforms to the USB 2.0 Mass Storage Class Device standard and this recorder's native recording file format is .WAV. This means recordings can be rapidly uploaded to a computer and used in conjunction with most common audio production software.

Versatile Recording Functions The PCM-D50 offers comprehensive signal processing features for location recording including a unique dual digital limiter function (inherited from the PCM-D1 recorder), a high pass filter with selectable frequencies (150 Hz or 75 Hz) and SBM (Super Bit Mapping) noise shaping. In addition, the PCM-D50 includes a 5 second pre-record buffer with an A-B repeat playback function.

Sony PCM-D50 Portable Linear PCM Digital Recorder Specifications:

• Built-in Microphones
  Electret Condenser microphones. High sensitivity -35.0 dB/Pa 1kHz (typical); Maximum input level 120 dB SPL; Self-noise level 20.0 dB SPL (A)

• Recording Media
  Built-in flash memory 4 GB, Memory Stick Pro-HG Duo (Not Supplied), Stereo Recording. The PCM-D50 is compatible with Memory Stick Pro-HG Duo MS-EX4G (4GB), MS-EX2G (2GB), and MS-EX1G (1GB); and Memory Stick Pro Duo (High Speed) MSX-M2GNU (2GB) and MSXM1GNU (1GB)
• Sample Rates
  22.05 kHz, 44.1 kHz, 48 kHz and 96 kHz
• Quantization
  16-bit linear, 24-bit linear

• Recording File Format
  Linear PCM Stereo .WAV
• MP3 Playback
  Compatible bit rates and sampling frequencies:
  MPEG Version 1 Layer 3: 32, 44.1, 48kHz with 32 to 320 kbps (VBR)
  MPEG Version 2 Layer 3: 16, 22.05, 24 kHz with 32 to 160 kbps (VBR)

• Maximum Record Time using Internal 4 GB Flash Memory
  22 kHz 16-bit Recording Mode: 12 hours and 55 minutes
  44.1 kHz 16-bit Recording Mode: 6 hours and 25 minutes
  44.1 kHz 24-bit Recording Mode: 4 hours and 15 minutes
  48 kHz 16-bit Recording Mode: 5 hours and 55 minutes
  48 kHz 24-bit Recording Mode: 3 hours and 55 minutes
  96 kHz 16-bit Recording Mode: 2 hours and 55 minutes
• 96 kHz 24-bit Recording Mode: 1 hour and 55 minutes
• Frequency Response (Line Input to Line Output)
  For Fs = 22.05 kHz: Frequency Response = 20 Hz to 10 kHz
  For Fs = 44.1 kHz: Frequency Response = 20 Hz to 20 kHz
  For Fs = 48 kHz: Frequency Response = 20 Hz to 22 kHz
  For Fs = 96 kHz: Frequency Response = 20 to 40 kHz
• Signal-to-Noise Ratio (Line Input to Line Output)
  93 dB or greater (1 kHz IHF-A) when set to 24-bit
• Total Harmonic Distortion (Line Input to Line Output)
  0.01% or below (1 kHz, 22 kHz LPF)
• Wow and Flutter
  Below measureable limit (less than +/-0.001% W. Peak)
• Microphone Input (stereo mini jack)
  Input impedance: 22k, rated input level: 2.5mV, minimum input level: 0.7mV. Supports external mic plug-in power
• Headphone output (stereo mini jack)
  Rated output level: 400 mV, maximum output level: 25 mW +25 mW or more, load impedance: 16 ohms
• Line Input (OPT)
  Analog input - Input impedance: 40k ohms, rated input level: 2.0V
  Minimum input level: 450 mV
  Optical Digital Input - Input level: -24.5 dBm to -14.5 dBm, Absorption wavelength: 630 nm to 690 nm

• Line Output (OPT)
  Analog output - Output impedance: 220 ohms, rated output level: 1.7V, load impedance: 22k ohms
  Digital optical output - Output level -21 dBm to -15 dBm, Emission wavelength: 630 nm to 690 nm
• USB
  Hi-speed USB, mass storage class
• Power Requirements
  DC IN 6V, Four AA (LR6) alkaline batteries (supplied), Four nickel metal hydride rechargeable batteries NH-AA (not supplied)
• Power Consumption
  0.75W
• Dimensions
  2-7/8" x 6-1/8" x 1-5/16" (w x h x d) not including projecting parts and controls
• Mass
  12.88 oz (including batteries)

Sony PCM-D50 Portable Linear PCM Digital Recorder Features:

• Portable and rugged 96 kHz and 24-bit recorder
• LCD digital peak bargraph metering-along with dedicated nominal and peak level LEDs
• Offers solid-state storage, free of drive mechanisms
• Built-in high-quality electret condenser stereo microphones
• Dual A/D digital limiter and low cut filter
• MP3 playback and digital pitch control
