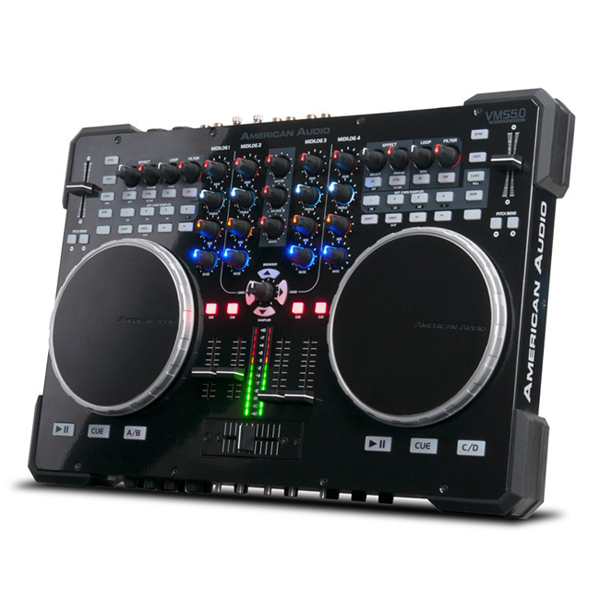

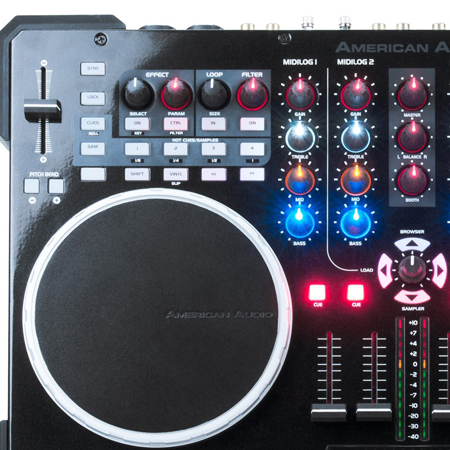

VMS 5 has 62 Assignable MIDI buttons and switches, dual 2000 point resolution touch sensitive turntable scratch controls, dual MIDI Controls on all buttons and switches, 5 assignable linear fader controllers, two 10-bit resolutions pitch sliders, and multi-functional rotary browser with 4 function buttons.

HARDCASE FEATURES:

The Universal case is made specifically for the SMALL to MEDIUM sizes, and case comes with plenty of foam inserts to get that completely customized snug fit to protect your favorite DJ controller! This Flight case is made with the highest quality material and workmanship to give you the ultimate security for any sized controller. If you have a passion for your gear and want to keep it safe at all times, this case will perform at the highest level everytime.

The case and sliding Laptop Shelf are constructed with our rugged signature 3/8" Gig-Ready Series Plywood, durable rubber wheels, reinforced steel ball corners, as well as recessed steel padded handles and latches. There is additional space for cables and small accessories in the back and underneath the unit for convenience, as well as a removable front and back panels for you to access the front and rear controls, headphone & mic jacks, etc.

For the safety of your equipment, do not attempt to transport with any gear stored on the sliding shelf and be aware that the shelf can be removed when slid out to its furthest point.

Features:

• Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
• All audio control faders, knobs, switches, and buttons smoothed - eliminates popping, wiper noise, and zipper noise
• On/Off soft startup and turnoff

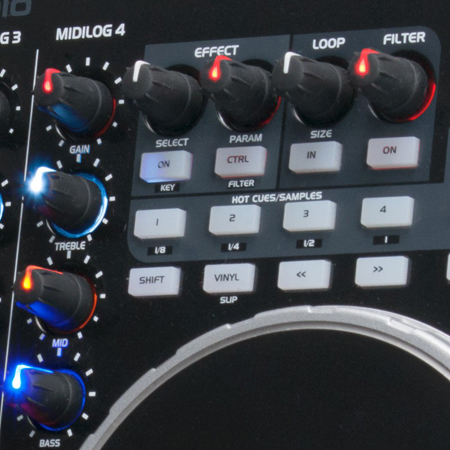

• Gain/treble/mid/bass EQ on all MIDILOG™ channels

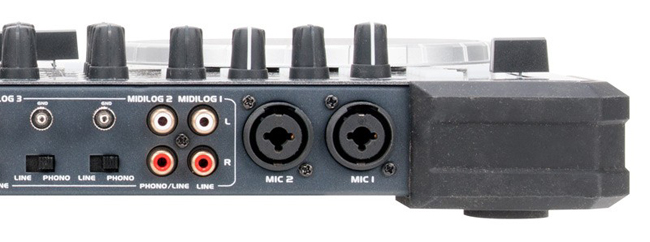

• 2 phono/line selectable analog channels

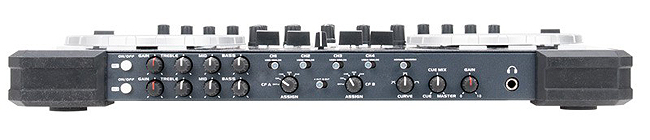

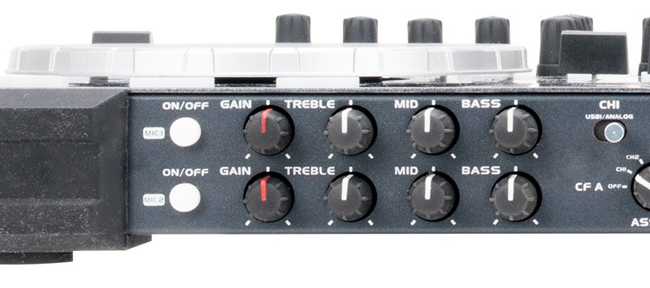

• Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
• On/off cueing on each MIDILOG™ channel
• Split cueing headphones with rotary mix control
• Illuminated rubber knobs for ease of use in dark environments
• Solid 1.6mm thick faceplate for extra durability
• Panel mounted rotary knobs
• Full analog mixer operation if the computer crashes or with external power supply
• Innofader replaceable crossfader compatible (sold separately)

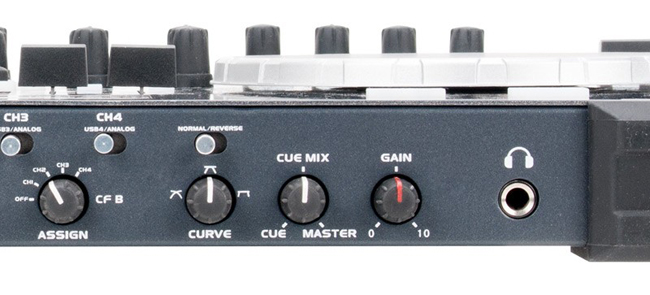

• Crossfader curve control
• Crossfader assign and reverse

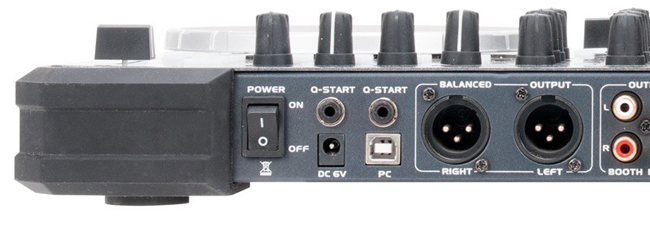

• Q-Start crossfader controlled startup for 2 external audio players
• User replaceable channel faders

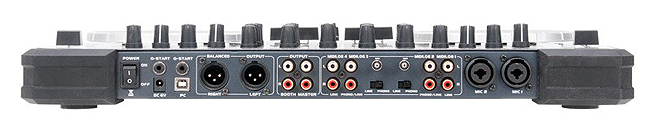

• Master and Booth outputs with L/R balance
• Balanced Master outputs

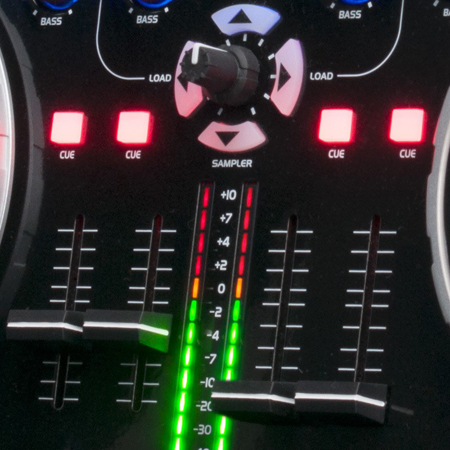

• 12 position stereo master output VU meter
• Dimensions (LxWxH): 19"x12.75"x1.5" / 482x325x40mm
• Weight: 13 lbs. / 6 kg.
• PDF Manual

MIDI FEATURES:

• Built-in mouse pad
• Long life MIDI assignable touch strips
• Two 10- bit resolution pitch sliders
• 62 assignable MIDI buttons and switches
• 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
• 4 assignable rotary encoders
• 34 assignable rotary controllers
• 5 assignable linear fader controllers
• Dual MIDI controls on all buttons and switches
• Dual 2000 point resolution touch sensitive turntable scratch controllers

AUDIO FEATURES:

• 24-bit 48 kHz analog audio
• 16-bit 44.1kHz USB audio
• 10-bit resolution on all analog fader controls
• THD <0.1%*
• Channel separation >60dB*
• S/N ratio >85dB*
• Analog channel audio latency < 1msec
• Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software channels and master recording
• 2 msec response on all buttons
• 4 msec response on all rotary and linear faders
• 1 msec USB latency
