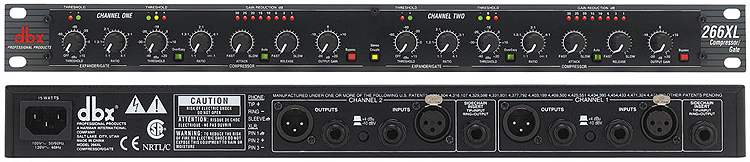

DBX 266XL Compressor/Gate

Description

When using the 266XL's AutoDynamic Attack and Release controls, artists and engineers will find that the center settings deliver classic dbx compression, while the full control range produces voicings that extend from slow "leveling" to aggressive "peak" limiting.
The Auto Dynamic circuitry continuously adjusts the actual attack and release times to optimally match the program material. Since users aren't restricted to using the Attack and Release controls only in "peak" operation, they can tailor the response of the 266XL for individual tracks, mixed program material, special effects or system protection. As a result, production studios can use the versatile 266XL to replace multiple "single-purpose" limiters while sound reinforcement users can standardize on the 266XL for all of their applications.
The 266XL's advanced gate circuitry uses a completely new, program-dependent timing algorithm to produce ultra-smooth release characteristics-even with complex signals, such as voice or reverb decays. dbx engineers went on to take advantage of the wide dynamic range and high precision of the dbx VCA to design in an extra-wide threshold range and ensure top gating performance for each application.
Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup, while the 266XL's intuitive operation lets users easily smooth uneven levels, add sustain to guitars, squash drums or tighten up mixes. In Stereo couple mode, the Channel 1 controls become Master controls, and Channel 2 follows precisely to ensure a rock solid stereo image-even with high amounts of compression. Professionals and newcomers will find that the 266XL sets up rapidly and musically the first time it is used, and every time thereafter.

Features:

• Goof proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes.
• New gate timing algorithms ensure the smoothest release characteristics.
• Program-adaptive expander/gates.
• Great sounding dynamics control for any type of program material
• Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup.
• Stereo or dual-mono operation.
• Balanced inputs and outputs on 1/4" TRS and XLR.
• Side Chain insert.
• Classic dbx "Auto" mode.
