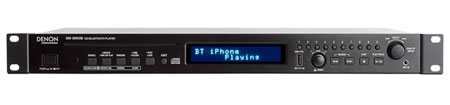

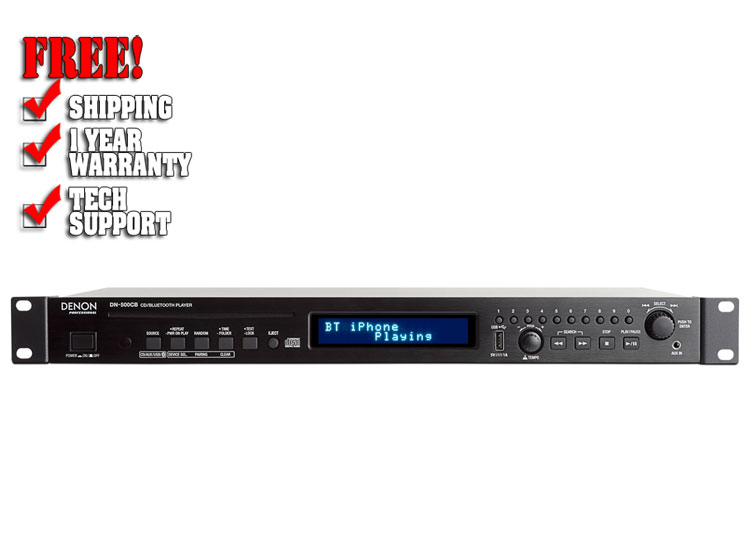

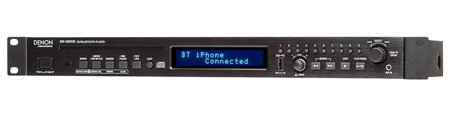

Denon DN-500CB

Features:

• Bluetooth 3.0 pairing to (8) devices
• Slot-loading CD transport
• USB host port for file playback
• 10-button direct track access
• 3.5mm AUX input for playback from portable players
• RS-232c control capable

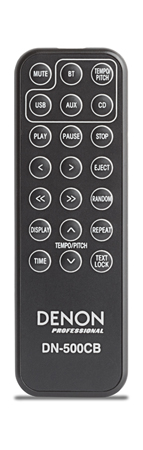

• Compact IR remote control included
• Balanced (XLR) and unbalanced (RCA) outputs

Specification:

Audio Specifications

• Audio channels: 2 channels / stereo
• Frequency response: 10 - 20,000 Hz, +/- 1.0dB
• Dynamic range: > 85dB (10- 20,000 Hz A-weighted)
• Signal to Noise ratio: > 90dB (1kHz, 0db, A-weighted)
• Channel separation: > 80dB (1kHz, 0dB, A-weighted)
• Total Harmonic Distortion (THD): < 0.01% (1kHz, 0dB, A-weighted)

Bluetooth Specifications

• Output class: Class C
• Bluetooth version: 3.0
• Support profile: A2DP, AVRCP (1.3/1.4)
• Support codecs: SBC, MP3, AAC, aptX

Outputs

• XLR (balanced) 2.0Vrms
• RCA (unbalanced) +4dBu

Remote Control

• IR Remote

Infrared protocol / NEC format

• Transmit output level: >200mVp-p

Serial Remote

• D-sub 9-pin female RS-232C
• Mode: Full duplex
• Baud rate: 9600/38400 b/s (selectable in the menu)
• Data: 8bits
• Start bit: 1bit
• Stop bit: 1bit
• Parity: none
• Flow control: none

Audio File / SIGNAL

• Sample rate: CD-DA, Audio file 44.1kHz
• Word length: CD-DA, Audio file 16-bit
• File format: Audio file WAV/MP3/AAC
• Bit rate: MP3, AAC, CBR/VBR ST/Mono 32~320kps
• ID3 tag: MP3 V1.x~2.4

CD Drive

Media

• File system: CD-DA (CD-TEXT), CD-ROM (ISO9660)
• Disc: CD, CD-R

USB Storage Device

• File system: FAT 16/32
• Media type: Flash/ HDD

Environmental

• Operating temperature: 40° - 95° F (5° - 35° C)
• Operating humidity: 25 ~ 85% non-condensing

General

Power

• Power requirements: 100-230 VAC
• Power consumption: <30W
• LCD Display: LCD 2 lines, 16 characters x 2 lines LCM display
• Dimensions: 19" x 13.7" x 1.73" (483 x 347 x 44mm)
• Weight: 6.4 lbs (2.92kg)

In the Box:

• DN-500CB
• Power Cable
• Remote Control
• RCA Cable
• User Guide
• Safety & Warranty Manual
