Shure M78S- Wide Groove/78 RPM

Description

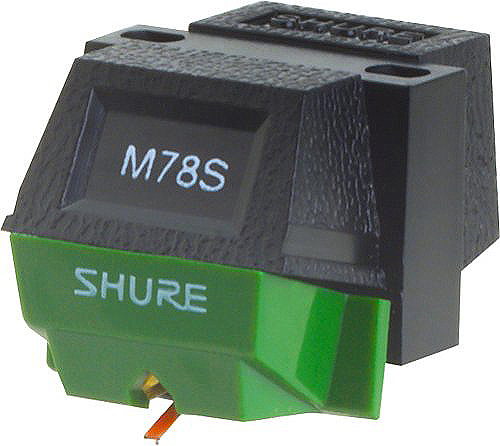

The Shure M78S monophonic cartridge is specifically designed for playing wide groove / 78 RPM records. The N78S replacement stylus can also be used in any of Shure's current line stereophonic cartridges for the same purpose.

Features:

Tone Arm Mount

• Standard 1/2 inch

Cartridge Type

• Moving magnet

Features

• Monophonic

Cantilever

• Shure Type I - Low mass
• Heat-treated aluminum alloy / tubular
• 1.0 mil wall thickness / 30 mil diameter

Diamond Stylus Tip

• Polished natural gemstone
• Spherical
• Radius: 2.5 mil

Tracking Force

• Effective at stylus tip
• Range: 1.5 to 3.0 grams

Output Voltage

• Typical at 1 kHz: 4.0 mV RMS at 5 cm/sec peak velocity

Recommended Load

• 47 kilohms in parallel with 250 pf

Net Weight

• 6.2 grams

Height

• 15.875 mm

Accessories Included

• User Guide
• Mounting hardware
• Stylus guard

Replacement Stylus

• User-replaceable N78S
