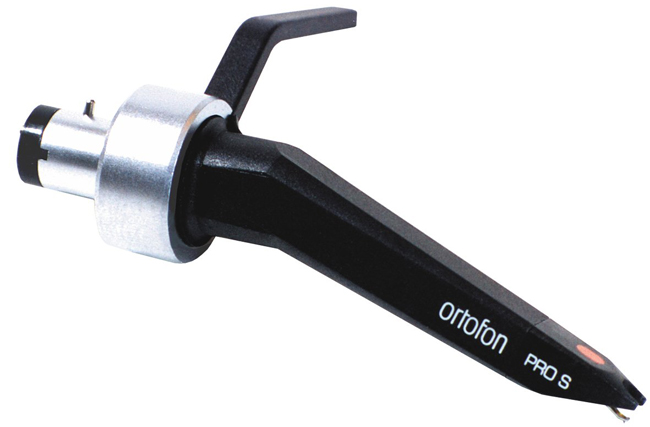

Concorde Pro S

Description

The Pro-S retains the overall sonic properties of the Pro Silver, but provides a wider stylus for low wear as well as durability under demanding conditions. No matter what the application, the Pro-S provides remarkable versatility for virtually any setting.

Features:

  • Output voltage at 1000 Hz, 5cm/sec. 5 mV
  • Channel balance at 1 kHz 2 dB
  • Channel separation at 1 kHz 20 dB
  • Channel separation at 15 kHz 15 dB
  • Frequency range at - 3dB 20-20.000 Hz
  • Frequency response 20-18.000 Hz +3/-2dB
  • FIM distortion at recommended tracking force, DIN 45.542 < 1%
  • Tracking ability at 315Hz at recommended tracking force 70 μm
  • Compliance, dynamic, lateral 7 μm/mN
  • Stylus type Spherical
  • Stylus tip radius R 18 μm
  • Equivalent stylus tip mass 0.5 mg
  • Tracking force range 3.0-5.0 g (30-50 mN)
  • Tracking force, recommended 4.0 g (40 mN)
  • Tracking angle 20°
  • Internal impedance, DC resistance 750 Ohm
  • Internal inductance 450 mH
  • Recommended load resistance 47 kOhm
  • Recommended load capacitance 200-600 pF
  • Cartridge color, body/stylus Black/Black
  • Cartridge weight 18.5 g
