Home > DJ Cartridges > Audio-Technica Cartridges > AT-XP5/H
Audio-Technica AT-XP5/H
Regular Price $199.99
Our Price $119.99
WARRANTY SPECIAL
TWO YEAR FULL WARRANTY. ONLY $32.99 A YEAR FOR FULL PEACE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details
Regular Price $99.99
Full Protection Only $32.99Regular Price $199.99
Our Price $119.99
TWO YEAR FULL WARRANTY. ONLY $32.99 A YEAR FOR FULL PEACE OF MIND. ENJOY YOUR EQUIPMENT WITHOUT WORRY. PLAY WITH IT AND IF ANYTHING IS WRONG, IT WILL BE FIXED. Details
Regular Price $99.99
Full Protection Only $32.99

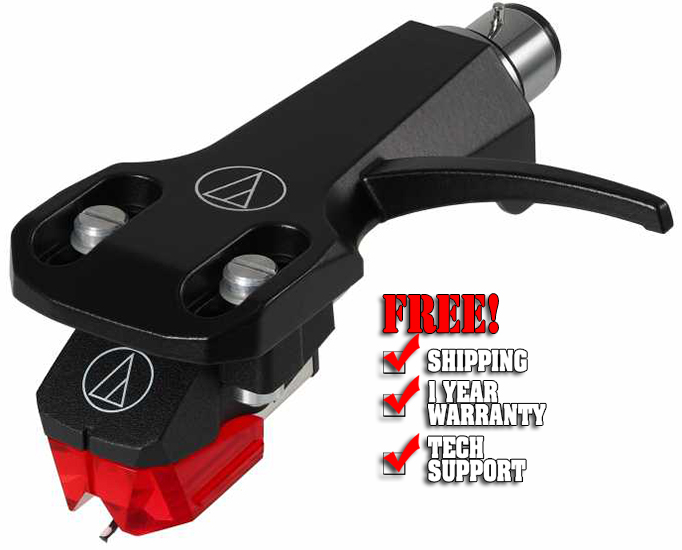

Audio-Technica AT-XP5/H

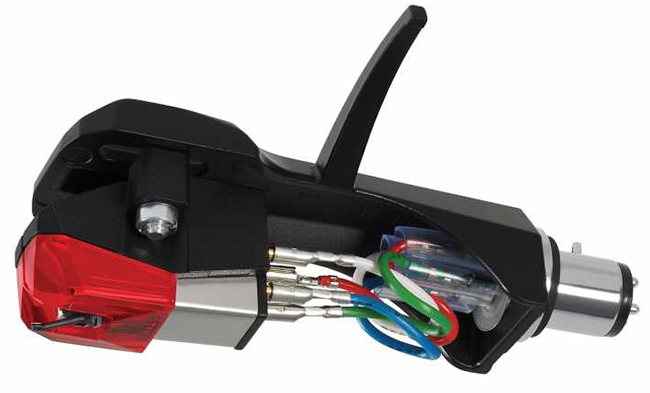

The AT-XP5/H combo kit includes the AT-XP5 DJ cartridge premounted on the AT-HS6BK headshell
Key Features:
- 0.3 x 0.7 mil elliptical bonded stylus tip
- Highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body
- 5.5 mV high-level output
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
- Universal ½"-mount headshell for 4-pin turntable cartridges
Frequency Response |
20-18,000 Hz |
Channel Separation |
20 (dB at 1 kHz) |
Vertical Tracking Force |
2.0-4.0 g (3.0 g standard) |
Stylus Construction |
Bonded round shank |
Recommended Load Impedance |
47,000 ohms |
Output |
5.5 mV (1 kHz, 5 cm/sec.) |
Channel Balance |
2.0 dB (1 kHz) |
Stylus Shape |
0.3 x 0.7 mil elliptical |
Cantilever |
Carbon fiber-reinforced ABS |
Mount |
Half-inch |
Replacement Stylus |
ATN-XP5 |
Coil impedance: |
6.7 k ohms (1 kHz) |
DC resistance: |
990 ohms |
Recommended load capacitance: |
100 to 200 pF |
Vertical tracking angle: |
20° |
Dimensions: |
17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D |
Weight (cartridge): |
6.2 g (0.22 oz) |
Dimensions (cartridge and headshell): |
21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D |
Weight (cartridge and headshell): |
15.6 g (0.55 oz) |
Weight (cartridge): |
6.2 g (0.22 oz) |
Dimensions (cartridge and headshell): |
21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D |
Weight (cartridge and headshell): |
15.6 g (0.55 oz) |
