The Rane SL 2 for Serato Scratch Live is a compact, professional two-deck interface packed with creative features to give DJs a competitive edge.
Boasting high quality 48 kHz, 24-bit audio, the Rane SL 2 outputs a warm, punchy sound that you have to hear to believe.
With high speed USB 2.0 connection, ASIO and Core Audio drivers, and galvanic isolation to ensure interference-free signal; the Rane SL 2 packs a massive punch.
Inputs for two deck mixing on turntables or CD decks.
Two software-switchable analog Thru connections for regular vinyl or CD.
Studio-grade phono preamps, and 48kHz 24-bit audio processing for superior sound quality.
Advanced, low latency USB 2.0 drivers
Built-in galvanic isolation to eliminate computer noise and interference.
Compact and ultra rugged hardware for portability and simple setup.
ASIO and Core Audio Drivers for studio production with third-party software.
Bus power from USB port or with optional external power supply*
The Rane SL series of interfaces with Serato Scratch Live set the standard for vinyl emulation. The SL 2 advances the technology found in the original SL 1 with these improvements:
CD / Phono input switch on the SL 2 box.
Superior sounding 24-bit converters.
Hotter 3 Vrms input and output.
44.1 or 48 kHz sample rate selected in software.
ASIO / Core Audio drivers for 3rd-party support.
Smaller and more compact die-cast design.
Continuous control signal on vinyl allows smooth accurate scratching. Scratch Live has the lowest latency vinyl emulation system on the market. It has advanced vinyl groove and stylus modeling algorithm for a sound indistinguishable from the real thing.
Innovative positioning system allows fast and accurate needle dropping. The record has thin marks every minute, and a thicker mark every 5 minutes (played at 33 RPM). These marks assist you when using needle dropping to move through the track.
The Vinyl Scroll track allows you use your turntable or CD to scroll through your crate and pick the next song without touching your laptop.
The Rane SL 2 gives you the freedom to take your entire digital music collection on the road with advanced features that add extra creativity to your DJing. This intuitive system replicates the traditional DJing experience for "real feel" usability. Low latency means the response time from touching the decks to hearing an audio signal is extremely fast. Serato engineers developed system level audio drivers that allow accurate and reliable
operation at faster speeds than any other similar package.

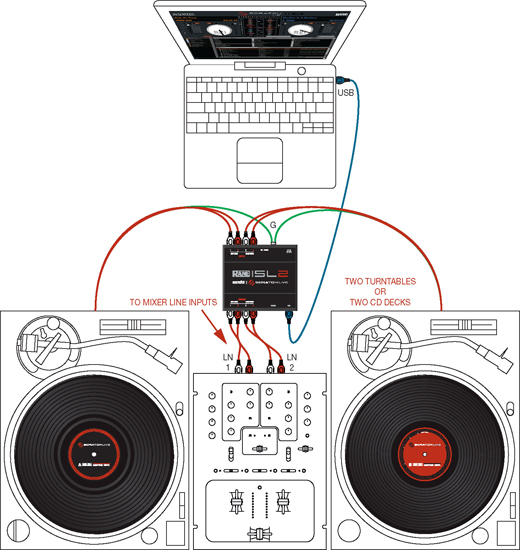

The Rane SL 2 USB interface connects one or two standard vinyl or CD turntables to your computer using a single USB cable and audio connections to line inputs on your DJ mixer.
Scratch Live supports all these file formats: Fixed and Variable Bit Rate MP3, AIFF, AAC, ALAC, WAV, OGG Vorbis, CD Audio and direct from the mixer. Record from your mixer's Aux output and immediately scratch as if it was on vinyl. Record direct from vinyl or CD and save as a 24-bit 48 kHz or 96 kHz stereo file.
Easily import your playlists and iTunes library. You can drag from Explorer (Windows) or the Finder (Mac) into the Scratch Live library. The crate and subcrate system helps organize your library and sets. Hot-swap external drives with fast automatic library merging and retention of crates. Browse your music collection by album, artist, BPM, or genre, with optional album art display. Intuitive search function can be applied to any field to find things quickly. Edit ID3 tags with full Unicode support.
Preprocessing of MP3 files is not required except to detect corrupt files or use the auto-BPM and auto-gain functions. Auto-BPM detects tempo information for tracks without it, saving it with each file. A tap tempo button allows you to enter your own. Auto-gain lets you set a target gain on any or all songs in your library. You can also manually adjust individual gain, remembered in each song file.
The Virtual Deck shows everything about the speed and position of a track. As the vinyl rotates, so does the line on the label. The circular progress bar around the edge is a visual representation of the position within the song. The time and remaining time are displayed in minutes and seconds. The turntable speed as a percentage of pitch shift is on the left, and the pitched BPM is on the right.
Different operating modes can be assigned to each Virtual Deck: Absolute Mode — exact reproduction of record movement, needle drop through tracks – just like normal vinyl. The beginning of the track is mapped to the start of the record. Relative Mode — skip-free scratching, jump to cue points, and pitch bend buttons combined with turntable control. This mode observes the relative forward and backward movement of the record, but does not regard the position within the record. Internal Mode — mix with just your laptop using features modeled on DJ CD players. Rewind, Bend down, Play / pause reverse, Play / pause forward, Bend up, Fast forward. Auto mode — play a sequence of tracks automatically.
With Key Lock on, the key or pitch of the song stays locked at what it would be if the track was playing at normal speed, regardless of the platter speed of the turntable or CD player. Key Lock has scratch detection, so it automatically turns off when scratching for a natural scratching sound.
Variable zoom waveforms centered around current position display horizontally or vertically. Waveforms are colored by frequency so you can distinguish instruments visually. Full track overview lets you quickly find where the beat drops, find breakdowns and choruses, and jump to any part of the song. The tempo display assists with rapid tempo matching of tracks. When the two tracks are matched to the same tempo, the peaks will line up. Beat display emphasizes the transients in tracks -- these are matched up when the two tracks are beat matched. Visual markers can be set for up to 5 cue points per song and triggered from the keyboard. Save up to 9 loops per track -- these loops are saved in the file, and will be present when you reload. Censor expletives on the fly with an instant quick-reverse and catch-up with no loss of timing or pitch.
MIDI control can interface USB controllers with Scratch Live. DJ controller support will vary.
Built-in help and tips in multiple languages are accessible anytime. There is even a low power warning when running off a laptop battery.
Why Scratch Live is the Number One Solution for Professional DJs
These are the minimum requirements to run Scratch Live with the SL 2. For best performance and for use in professional situations we recommend you buy a higher spec computer. We also recommend Intel processors.
Available USB 2.0 port.
1024 x 768 screen resolution or higher.
Hard drive space for music: 5400 RPM minimum, 7200 RPM recommended for high resolution audio playback.
2GHz Intel Core Duo.
OSX 10.5.8 or higher.
2.2GHz Intel Core Duo.
Windows XP with Service Pack 3 or
Windows Vista with Service Pack 2 or
Windows 7. We recommend Windows 7 over Vista.
*If you have a large library, you will benefit from having more RAM.
Note 1: If you are using Scratch Live's more system intensive features such as DJ-FX or multiple virtual decks and are having issues, you may need a higher spec computer for best results, or make sure you have optimized your system: Windows 7 and Vista /Mac OS X.
Note 2: If you are planning on using HID devices on Mac OSX 10.5 (Leopard), then you must use OSX version 10.5.6 or up. HID devices include Rane mixers such as the Rane Sixty-Eight or TTM 57SL and some 3rd party controllers such as the Pioneer CDJ-400, CDJ-900, or CDJ-2000 CD players.
The RS 6 universal power supply only works with the Rane SL 2, SL 3 or SL 4.The supply includes different input plugs for the USA, Europe, UK and Australia. The USA plug is attached at the factory — you may need to replace it in your country. To remove a plug, push the button while turning the outer rim counterclockwise. To attach a plug, rotate it to fit into the supply and turn clockwise until it locks in place. This power supply is regulated 7.5 volts DC, 1 amp, using a P6 type barrel plug.
* USA customers may purchase the RS 6 in the Rane Factory Store.
SERATO CODED CDs
Package of two replacement time code cd for serato scratch live. Regular Price $29.99 Our Price $9.99
