QSC PLX-3102

Description

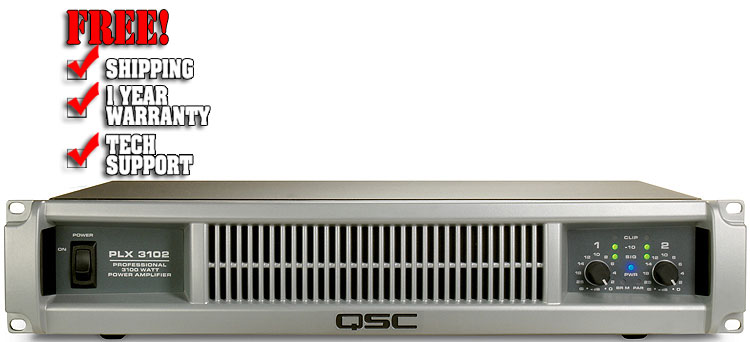

The PLX3102 is a premium quality, high-powered amplifier designed for the most demanding live performance uses. Built on the third generation of QSC PowerLight™ technology, the PLX3102 combines light weight, superlative audio quality and proven QSC reliability. With stronge power ratings, it is capable of providing plenty of clean, undistorted output to the most power hungry speaker systems.

The PLX3102 is the right choice for users who need to drive up to four loudspeakers from each amplifier channel (2 ohm loading), or when extremely high power bridge mono operation is required. It features built-in subwoofer processing, filter switches, and front panel indications of bridge mono status.

Power Ratings:

  • 600 watts at 8ohms 1000 watts at 4ohms 1550 watts at 2ohms 2100 watts at 8ohms in Bridged Mono
  • 3100 watts at 4ohms in Bridged Mono

Features

  • Very light weight (21 lbs)
  • Cooling design exhausts hot air out the front, keeping the rack cool and flow-through heat sinks require no filters that could become clogged
  • Front panel LED power, clip, -10 dB, and signal present indicators for system monitoring and troubleshooting and also features bridge and parallel mode LED indicators
  • Speakon® NL-4 output connectors provide a positive-locking speaker connection, Ch 1 output uses all 4 wires for single-cable connection to bi-amplified speakers
  • Balanced XLR inputs with parallel TRS connectors accommodate all common input connectors and support loop-through operation
  • Speakon® NL4 and binding post outputs
  • 21-position front-panel gain controls for precise, repeatable amplifier adjustment
  • Patented PowerLight power supply technology
  • 100 Hz high pass and low pass filters for bi-amping subwoofer and satellite systems without the need for an external crossover
  • Switchable/defeatable 33 Hz infrasonic filters protect woofers from over-excursion damage
  • Switchable/defeatable clip limiters

The PLX2 series is a range of premium quality, high-power amplifiers designed for the most demanding live performance uses. Built on the third generation of QSC PowerLight® technology, PLX2 amplifiers combine light weight, superlative audio quality and proven QSC reliability. With power ratings up to 3,600 watts, PLX2 amplifiers are capable of providing plenty of clean, undistorted output to the most power hungry speaker systems.

Two ways to get PLX2 performance

The "02" models (PLX1802, PLX2502, PLX3102 and PLX3602) are the right choice for users who need to drive up to four loudspeakers from each amplifier channel (2 ohm loading), or when extremely high power bridge mono operation is required. These models feature built-in subwoofer processing, filter switches, and front panel indications of bridge mono status.

The compact "04" models (PLX1104, PLX1804) bring the same performance and technology, plus even greater value, to applications that don't require bridged or 2 ohm operation. Designed to power one or two speakers from each amplifier channel (4 ohm minimum loading), these models offer a simplified feature set while retaining genuine, uncompromised PLX performance and technology. Weighing just 13 pounds (5.9 kg) these "plug-and-play" amplifiers are perfect for ultra-portable rigs, as well as reference-quality playback.

Mechanical

PLX2 series amplifiers have the refined, rugged good looks usually associated with high performance racing cars, competition bikes, professional power tools, and high power machinery. A solid, cast-aluminum front panel adds professional style to any rack while also acting as an integral I-beam, rigidly tying the chassis together for years of on-the-road reliability.

Additional mechanical touches such as the side stiffening rails, rear rack ears and cable tie anchor points attest to QSC's years of experience and attention to detail. QSC has even designed the integrated front handles so the amplifier slides into a rack without scraping the installers fingers on the rack sides. The exterior appearance of PLX2 amplifiers conveys what's inside - simply and truly, 13 to 21 pounds of the most advanced professional power amp on the planet.

PowerLight Technology

PowerLight switchmode technology replaces a large, heavy AC transformer (typically 20 lbs. / 9 kg) with a highly efficient and lighter-weight active design. Conventional AC transformers provide 100 or 120 energy pulses per second, the PowerLight supply delivers 190,000 to 230,000 pulses per second. More pulses make it easier to provide on-demand power for the amplifier's output section. The power supply doesn't "sag" so bass notes stay full and powerful while the high end remains crisp and clean.

Audio Quality

PLX2 audio power circuitry achieves performance normally associated with studio reference amplifiers. In order to reduce crossover distortion, precision bias tracking makes minute adjustments as amplifier temperature changes. The benefit is cleaner high-frequency and more consistent sound no matter how hard the amplifier is driven. The higher power models use QSC-exclusive class H output circuitry, a form of audio "turbocharging" that increases maximum power without affecting the basic audio quality.
