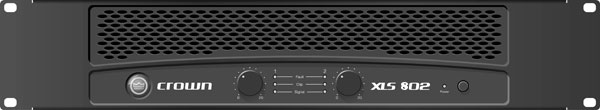

XLS-802
The XLS series amps are perfect for DJs and bands that need a rugged, dependable amp at an affordable price!
	*1kHz power
	2-OHM Stereo (per channel)	1050W
	4-OHM Stereo (per channel)	800W
	8-OHM Stereo (per channel)	500W
	8-OHM Bridge-Mono	1600W
	4-OHM Bridge-Mono	2100W
Regular Price $692.99 Our price $599.99 What is warehouse resealed?
XLS series amps combine reliability wihth a number of great features! Performance Power (1 kHz): 8 ohms: 500W 4 ohms: 800W 2 ohms: 1050W 8 ohms bridged to mono: 1600W 4 ohms bridged to mono: 2100W Sensitivity (volts RMS) for full rated power at 4 ohms: 1.25 V Frequency Response (at 1 watt) 22 Hz to 20 kHz: +0 dB, –0.8 dB Signal-to-Noise Ratio (20 Hz to 20 kHz) A-weighted, below rated power: >98 dB No weighting, below rated power: >93 dB Total Harmonic Distortion (THD): <0.5% Intermodulation Distortion (IMD): (60 Hz and 7 kHz at 4:1) from full rated output to –40 dB: < 0.3% Damping Factor (8 ohm) 10 Hz to 400 Hz: >200 Crosstalk (below rated power) at 1 kHz: –76 dB. at 20 kHz: –58 dB Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced Load Impedance: Rated for 2 to 8 ohms per channel in Stereo, 4 to 8 ohms in Bridge Mono AC Line Voltage and Frequency Configurations Available (+/-10%): 120 VAC 60 Hz, 100 VAC 50/60 Hz, 220 VAC 50 Hz, and 230-240 VAC Controls Level: 2 front-panel rotary level controls, 1 for each channel Power: Front-panel switch; on when in the IN position Circuit Breaker: Back-panel breaker provides overload protection Mode Switch: Back-panel switch selects Dual or Bridge-Mono mode Indicators Signal Presence Indicators: 2 green LEDs, one for each channel, illuminate when the channel’s input signal exceeds –40 dBu Clip Indicators: 2 red LEDs, 1 for each channel, illuminate when the channel’s output is being overdriven Power Indicator: Blue LED indicates amplifier has been turned on and AC power is available Fault Indicator: 2 red LEDs illuminate when amplifier is in protect mode. Also illuminates briefly during normal power-up when amplifier is first switched on Input/Output Input Connectors: 1 per channel; back-panel 3-pin female XLR input connectors Output Connectors: Two 4-Pole Speakon Output Connectors accept 2-pole or 4-pole Speakon connectors. The top Speakon connector is wired for both channels so it can be used for bridge-mono wiring or for stereo wiring of two speakers to a single Speakon connector. One pair of back-panel binding posts per channel; accepts banana plugs or bare wire. (European models do not accept banana plugs.) Protection XLS Series amplifiers provide extensive protection and diagnostic capabilities, including output current limiting, DC protection, circuit breaker, and thermal protection. Construction Ventilation: Flow-through ventilation from front to back Cooling: Internal heat sinks with forced-air cooling for rapid, uniform heat dissipation Air Volume Requirements (per minute per unit): 80.15 cubic ft. Dimensions: EIA Standard 19 in. (48.3-cm) rack mount width (EIA RS-310-B), 3.5-inch (8.9-cm) height and 15.2 in. (38.6-cm) depth Weight: 40.5 lb (18.4 kg)
