Overview

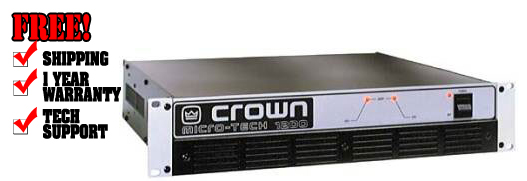

Crown MT-1200

  • Amplifier Accessories: Accepts MT-XLR and MT-BB input modules.
  • Signal-to-Noise:(A-weighted) Better than 105 dB below full rated power into 8 ohms with 26 dB gain. (Unweighted) Better than 100 dB below full rated power.
  • Input Impedance: Nominally 20 K ohms balanced and 10 K ohms unbalanced.
  • Controls: Enable, channel 1 and 2 level controls, stereo/mono switch (Stereo, Bridge-Mono, Parallel-Mono), ground lift switch, three-position input sensitivity switch (0.775 V or 1.4 V for full output or a 26 dB voltage gain).
  • Connectors:
  • Inputs: Balanced 1/4-in. phone jack for each channel.
  • Output: A pair of color-coded binding posts for each channel.
  • Dimensions: 19 in. (48.3 cm) standard rack mount width, 3.5 in. (8.9 cm) height, 16 in. (40.6 cm) depth behind mounting surface.
  • Approximate Weight: 41 lbs., 1 oz. (18.7 kg).
  • Total Harmonic Distortion (THD): Less than 0.05% at full rated power from 20 Hz to 1 kHz increasing linearly to 0.1% at 20 kHz.
  • Intermodulation Distortion (IMD): (60 Hz and 7 kHz 4:1) Less than 0.05% from less than 164 milliwatts to full rated power.
  • Load Impedance: Rated for 2 to 8 ohms in Stereo, 4 to 16 ohms in Bridge-Mono, 1 to 4 ohms in Parallel-Mono. Safe with all types of loads.
  • Output Power per Channel in Stereo Mode with Both Channels Driven:
    FTC Continuous Average Power from 20 Hz to 20 kHz with No More than 0.1% THD: 295 watts into 8 ohms, 425 watts into 4 ohms.
  • Maximum Average Power at 1 kHz with No More than 0.1% THD: 310 watts into 8 ohms, 480 watts into 4 ohms, 675 watts into 2 ohms.
  • Maximum Average Power at 1 kHz with No More than 0.1% THD:
    1,300 watts into 4 ohms.
